- Automatic temperature adjustment cat bedPololu Zumo 2040 Assembled Robot w/ 100:1 HP Motors

Title Default Title
Qty:

Description

  • Zumo 2040 Assembled Robot w/ 100:1 HP Motors by Pololu
  • Features integrated dual motor drivers and proximity sensors
  • Includes comprehensive IMU for impact detection
  • Compact design eligible for Mini Sumo
  • Can be programmed with C++, Arduino, or Python

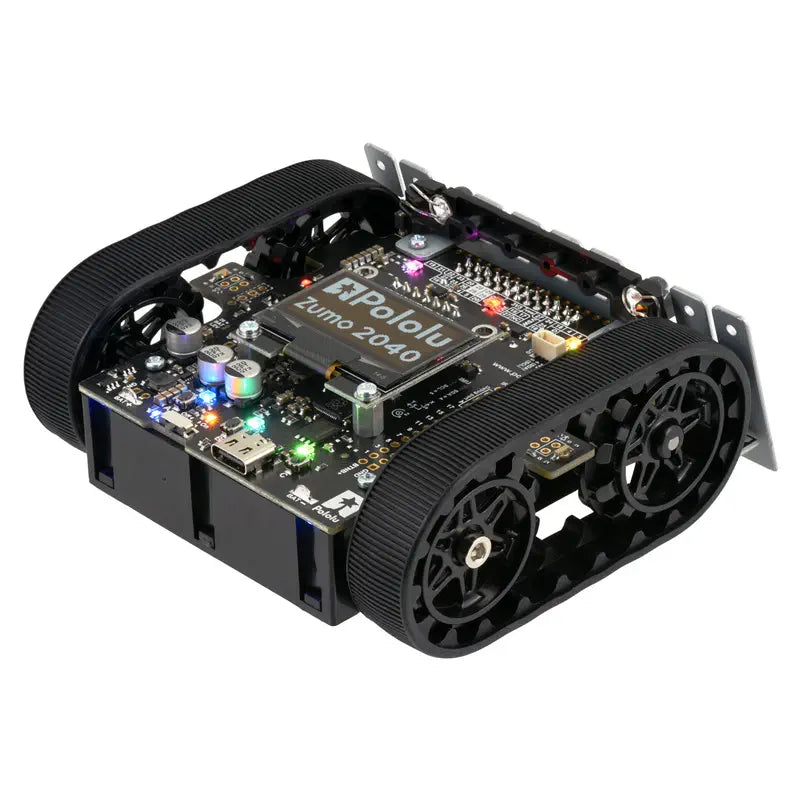

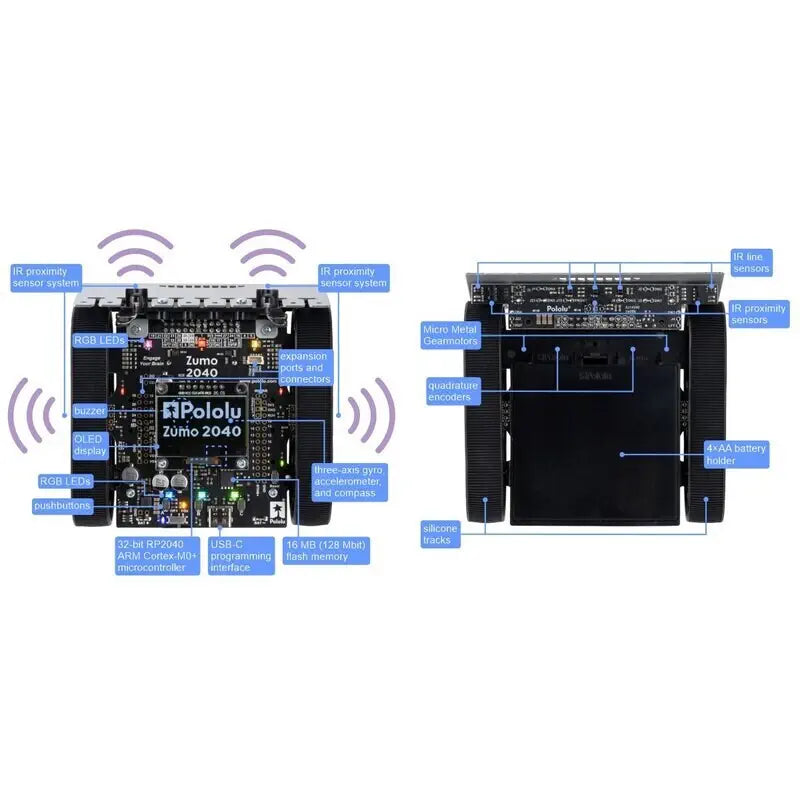

The Pololu Zumo 2040 Assembled Robot w/ 100:1 HP Motors is a multifaceted tracked robot that is built around the Raspberry Pi RP2040 MCU. This model comes with two 100:1 HP micro metal gearmotors and features integrated dual motor drivers, quadrature encoders, line sensors, as well as side and front proximity sensors for object detection. It also includes a comprehensive IMU for impact detection and orientation tracking, six RGB LEDs, and a graphical OLED display.

The compact design of this robot, measuring less than 10 x 10 cm, makes it eligible for Mini Sumo. It requires no soldering or assembly, simply add 4 AA batteries and connect it to a computer using a USB-C cable to prepare the Zumo for programming.

  • 1x Zumo 2040 robot (Item #5013) - fully assembled
  • 2x 100:1 HP micro metal gearmotors with extended motor shafts
  • 96 x 99 x 39 mm (L x W x H)
  • Measures less than 10 cm on each side

PDF File

  • Processor: RP2040 at 125 MHz
  • RAM: 264 Kbytes
  • Program Memory: 16 Mbytes
  • External Programmer Required: No
  • Assembled: Yes
  • Version: Assembled with 100:1 HP motors
  • Weight: 160 g
